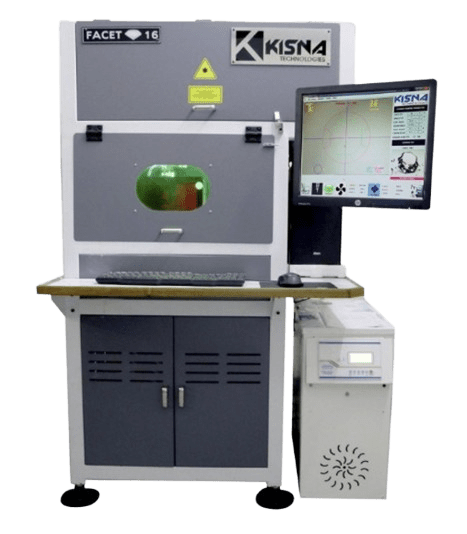

Processing of Round Diamond Facet Cutting at a Single Set - up

TECHNICAL SPECIFICATIONS

Laser Source : NG 75W CW

Laser Type : ND : YAG DP SSL

Wave Length : 1064nm

Beam Mode : TEM00

Working Watt : 4 - 18

CNC

Axis Travel : 130mm * 130mm * 70mm

Resolution  :  2 Micron

Repeatability  :  2 Micron / 25mm

Accuracy  :  2 Micron

Drive Type  :  AC Servo

ELECTRICAL

Power Requirement : 220 Vac, 50HZ, 1 Phase

Power Consumption : 3 Kva, 15Amp

OPERATING ENVIRONMENT

Temperature : 20 celsius - 30 celsius

Humidity : <60%

Coolant Requirement : 4-6 Ltr/Hr

Coolant Storage : 10 Litre

Dimension (L x W x H) : 90mm x 800mm x 1520mm
