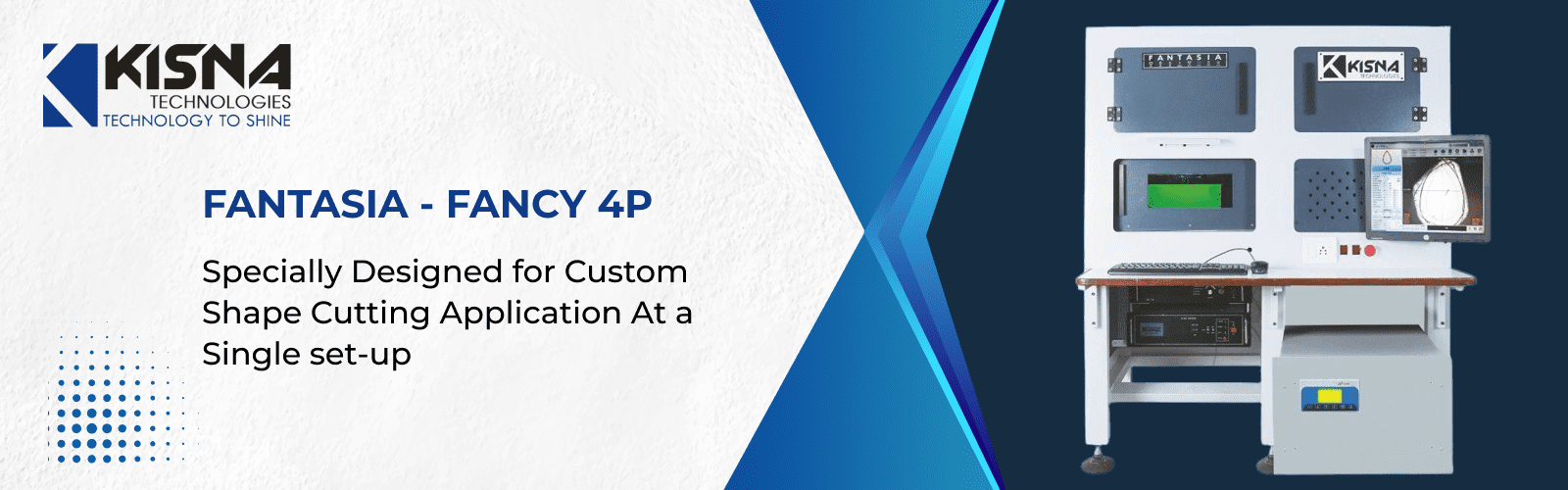

FANTASIA - FANCY 4P
Specially Designed for Custom Shape Cutting Application At a Single set-up
TECHNICAL SPECIFICATION
Laser Source : 75watt cw
Laser Type : DPSSL
Wave Length : 1064nm
Beam Mode : TEMOO
Working Watt : 4-18 watt
CNC Table : 170mm x 170mm
Resolution : 1 Micron
Repeatability : 3 Micron
Accuracy : 2 Micron
Drive Type : AC Servo
Z Axis Travel : 100 mm
Power Supply : 1 Phase, 15 Amp
Power Consumption : 1.7 KW
OPERATING ENVIRONMENT
Temperature / Humidity : 20-30 / <60% celsius
Coolant Requirement : 4-6 lt/hr.
Coolant Storage : 10 Liter
Dimension : 1565 x 750 x 1280 mm
Computer System : HP, Corei3
FEATURES AND BENEFITS
- Specially Designed for Custom Shape Cutting Application At a single set-up
- Accurate Model with symmetry gives minimum polishing time
- Shape to match the wire frame for Easily fast operating
- QR Code scan Reader for stone symmetry
- Shape wise smart parameter select for best cutting symmetry
- Accurate Banding facility
- Auto Power And Auto frequency
- User friendly software
