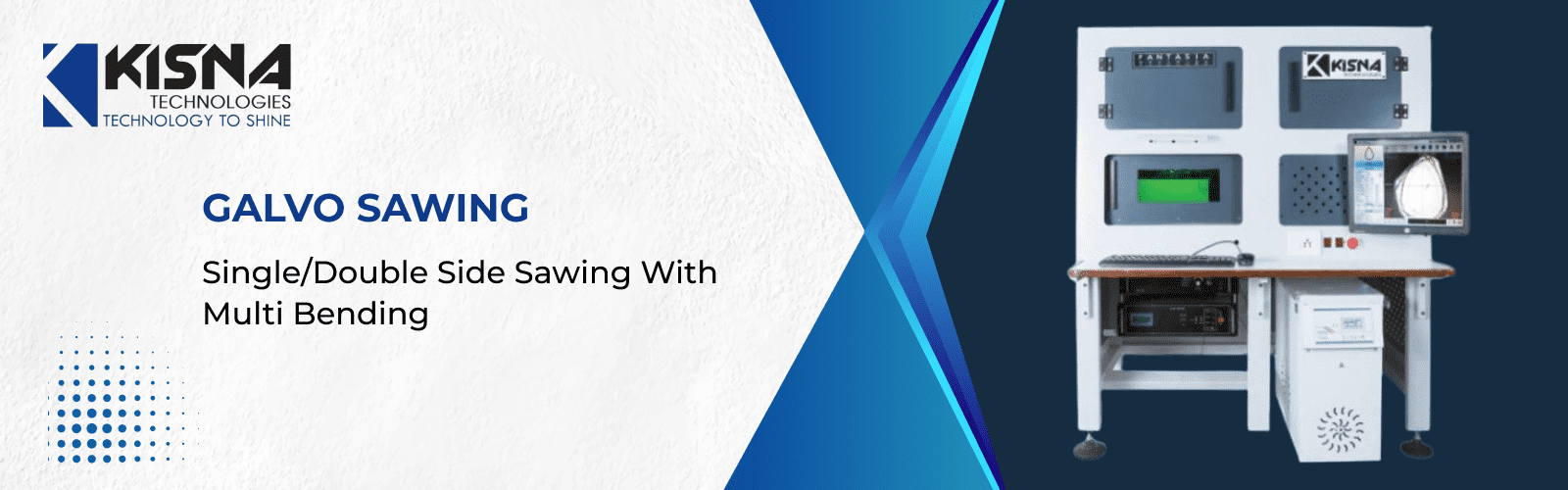

Single/Double Side Sawing With Multi Bending

TECHNICAL SPECIFICATION

Laser Source  :  NG 75W CW

Laser Type  :  ND : YAG DP SSL

Wave Length  :  532 nm

Beam Mode  :  TEM 00

Working Watt  :  8-14 watt

CNC

Axis Travel  : 150mm*150mm*70mm

Resolution  :  2 Micron

ELACTRICAL

Power Requirment  : 250 VAC, 50Hz, 1 Phase

Power Consumption  : 2 Kva, 16 Amp

OPERATING ENVIRONMENT

Temperature  :  20 celsius - 30 celsius

Humidity  :  <60% celsius

Coolant Requirement  :  4-6 lt/hr.

Coolant Storage  :  10 Liter

Dimension  :  900mm x 800mm x 1520mm
