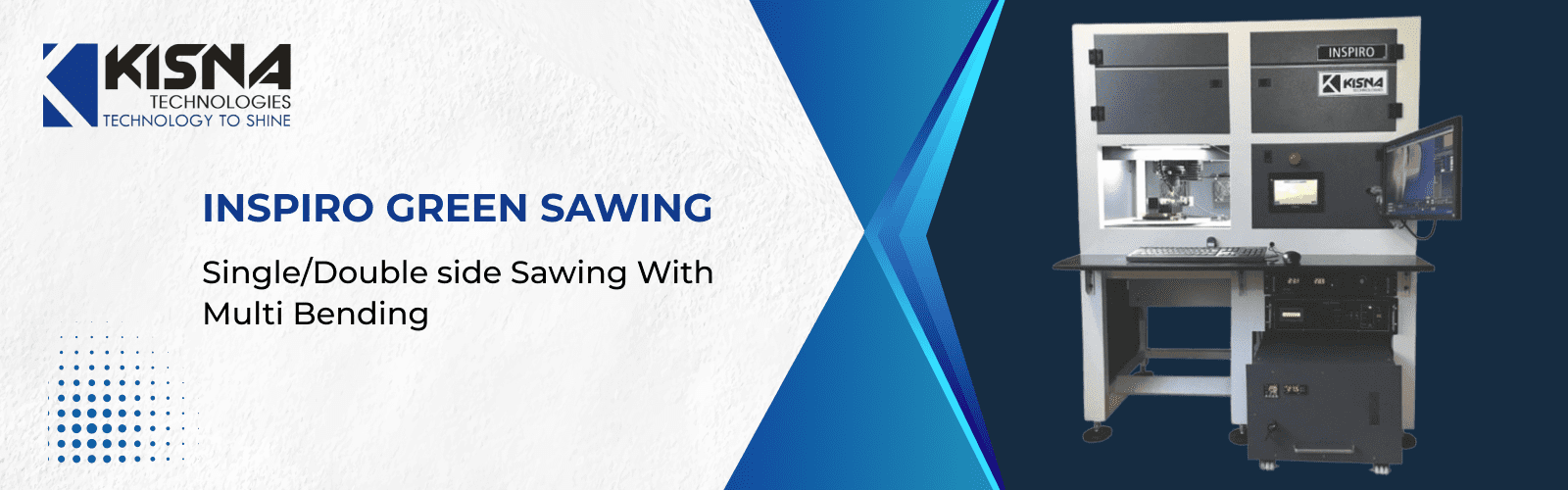

Single/Double side Sawing With Multi Bending

TECHNICAL SPECIFICATIONS

Laser Source : NG 75W CW

Laser Type : ND : YAG DP SSL

Wave Length : 532 nm

Beam Mode : TEM00

Working Watt : 8 - 14

CNC

Axis Travel : 150mm * 150mm * 70mm

Resolution  :  2 Micron

Repeatability  :  2 Micron / 25mm

Accuracy  :  2 Micron

Drive Type  :  AC Servo

ELECTRICAL

Power Requirement : 220 Vac, 50HZ, 1 Phase

Power Consumption : 2 Kva, 16Amp

OPERATING ENVIRONMENT

Temperature : 20 celsius - 30 celsius

Humidity : <60%

Coolant Requirement : 4-6 Ltr/Hr

Coolant Storage : 10 Litre

Dimension (L x W x H) : 90mm x 800mm x 1520mm

FEATURES AND BENEFITS
